Visual Studio.Net with C#

2. Building Database Applications

In this chapter, we shall devote our time and energy writing applications that interact with databases. We would commence by creating a new project. Though we had assured you that we would demonstrate all the steps needed to build an application, by displaying the corresponding screens, we shall avoid displaying the screens that have already been shown in the earlier chapter. This will indeed save a lot of book space. However, we shall explain all the steps, but with only the fresh screens, that have not been shown earlier. If the screen that you obtain does not match with our explanation, the possibilities could be that either you or we have gone astray somewhere. At moments like these, we would request you to immediately dispatch an email to us, describing the problem.

As was learnt in the previous chapter, in order to create a new project, we need to click on the File menu option and select New Project. At the New Project dialog box, we have to select the following:

• Visual C# Projects in the Project Type pane.

• Windows Application in the Templates pane.

Believe it or not, we have assigned the name z1 to the project after consulting an astrologer. Further, because we want all our projects to be saved in a single subdirectory, we have chosen the sub-directory 'vijay'. Hence, the location becomes c:\vijay. If a project has not been closed gracefully while exiting from this product, on restarting Visual Studio.Net, an extra line gets displayed, containing two radio buttons relating to Solution. For the moment, we shall take it for granted that a Solution is the same as a Project. The radio button for Close Solution is selected. Had we closed the project while exiting, this line would not have appeared, as was observed in the first example. Screen 2.1 displays the options very visibly.

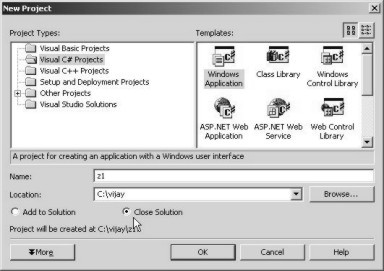

Screen 2.1

Click on the OK button to close the dialog box. Also, make sure that the Properties window is visible on the left, while the Toolbox window is visible on the right. Both these options are placed under the View menu option, lest you forget.

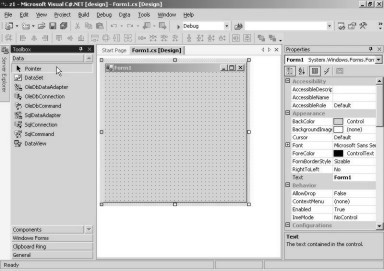

The Toolbox has a tab called Data. If we click on this tab, we will see a large number of controls that may be employed to work with a large number of data sources or databases, as is seen in screen 2.2.

Screen 2.2

Thus, the toolbox segregates the controls, depending upon where they are going to be used and their functionality. Earlier on, we had worked on the Windows Forms controls, where we had used controls such as the button, the progress bar, the track bar, etc. In this chapter, we shall focus on the Database category, where we would concentrate on the controls pertinent to Databases only.

At the outset, we commence with an object that understands communication and interaction with databases. In the Visual Studio.Net world, this object is termed as a Data Adapter. There are two Data Adapters displayed in the above list, i.e. an OleDbDataAdapter and an SqlDataAdpater. They are similar in functionality, barring a minor difference. The OleDbDataAdapter is generic in nature, which explains why it can speak to any database or any data source. On the other hand, an SqlDataAdapter can communicate only with SQL Server, which is a database server from Microsoft. As a result, the SqlDataAdapter can retrieve data relatively faster than OleDbDataAdapter.

We select the OleDbDataAdapter in the toolbox and then drag and drop it onto the form. Surprisingly, it places itself at the bottom of the form, and then, a screen from the Data Adapter Configuration wizard, appears with some text contained in it. This is shown in screen 2.3.

Screen 2.3

To create an Adapter, a large number of steps need to be executed. As these steps are required to be performed in a specific sequence, the wizard lends a helping hand in guiding us through this process. It also provides a GUI to accept the relevant values from us.

The Adapter basically requires two types of information:

• The first one refers to the database where the data is stored.

• The second one refers to the data from this database.

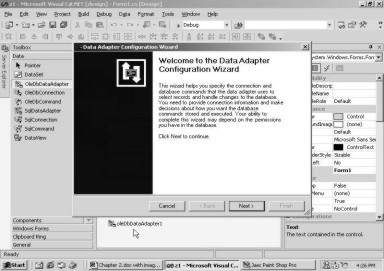

After reading the opening titles in the first screen of the Wizard, we move on to the next screen by clicking on the Next button. Our screen should bear resemblance to screen 2.4.

Screen 2.4

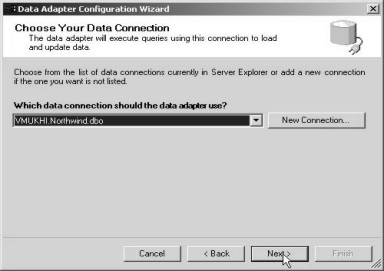

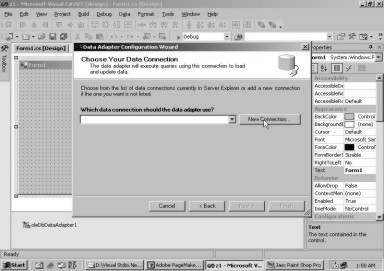

Here, we are required to provide information about the connection that we desire to use, in order to connect to the database. The wizard specifies a Server Explorer, which we shall delve upon shortly. Since there are no connections at present, we create a new connection. To do so, we need to click on the New Connection button, to obtain a screen similar to screen 2.5.

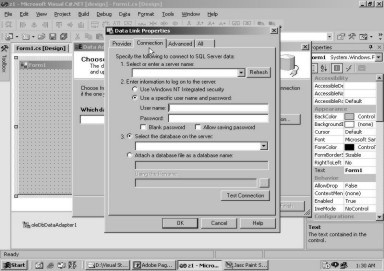

Screen 2.5	Screen 2.6

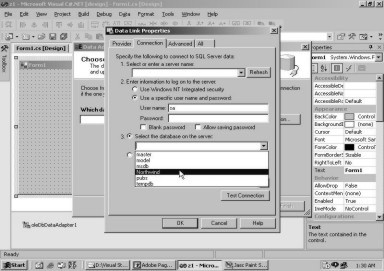

It is within this dialog box, that all the connection details are required to be keyed-in. We are not required to specify all of them. The name of the server can be left blank, since the Connection has the ability to internally figure out the server that it has to talk to. The next textbox requires the 'username' and 'password'. This has been furnished for security reasons, as the access to the database should be restricted only to a chosen few. The most important user that is created while installing the SQL Server database is granted an id of 'sa'. The password assigned to this user has been left blank at the time of installation. Thus, we enter 'sa' as the username and click on the check box that says 'Blank Password'. On doing so, the password textbox gets disabled.

A database can contain numerous tables, since data is normally stored in tables. Therefore, logical organization of the tables into databases, becomes the inescapable necessity of the hour. For example, tables pertaining to a financial application could be stored in a database named 'finance', while those pertaining to production could be stored in another database named 'production'.

While installing Visual Studio.Net, Microsoft creates a large number of these databases. One such database is called NorthWind. Clicking on the down arrow for the database, displays a list of databases as shown in screen 2.6. Remember, we have not created any of these databases. They have been provided as an accessory, along with the product.

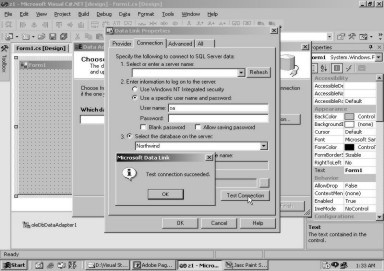

The dialog box provides a button labeled 'Test Connection', to facilitate testing of the connection to the database. During testing, various facets are authenticated, such as:

· Availability of the database.

· Validation of the username.

· Validation of the password.

Thus, clicking on the button results in verification as to whether the user can connect to the database server or not. Here, we get a message box indicating success, as shown in screen 2.7.

Screen 2.7

If you change the name of the user to a non-existent one, such as sa100 and then click on the Test Connection button, an error will be generated. Working with wizards can indeed prove to be very beneficial, since it is possible for us to verify whether we are on the right track or not, at every stage.

Click on the OK button of the Message Box followed by the OK button of the Dialog Box. The screen 2.8 is the same as screen 2.4, with which the wizard started, except for the fact that VMUKHI.Northwind.dbo is specified as the active data connection in the listbox. NorthWind is the name of the database with which we want to establish a connection.


Screen 2.8	Screen 2.9

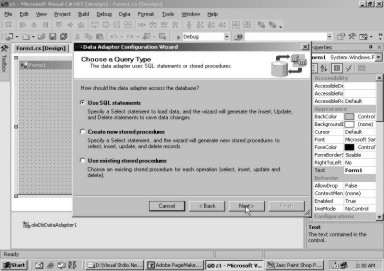

Select the Next button and the screen changes to the one displayed in screen 2.9.This screen requires us to select the method to be used, to fetch data from a database. There is an international standard called SQL or Structured Query Language. All databases in the world use and understand SQL. This standard or language has a list of words that fetch data from databases.

Another way of retrieving data is, by using Stored Procedures. It refers to executing program code residing on the server. Here, we select the SQL option, which is the default selection, and then, click on Next button to arrive at screen 2.10.


Screen 2.10	Screen 2.11

In this screen, the blinking cursor in the big textbox indicates, that we are expected to write an SQL statement to retrieve data from the database. Most of us are obviously not conversant with SQL at this point in time, nor are we aware of the tables and fields present in the NorthWind database. Don't feel vexed, as the Query Builder comes to the rescue. Click on the Query Builder button and the display changes to screen 2.11.

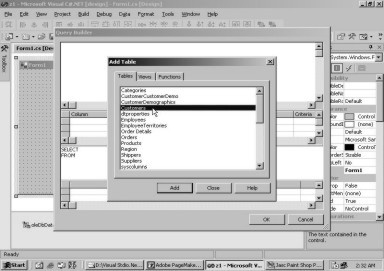

A dialog box pops up, exhibiting a list of tables, from where the data can be fetched. Thus, there is no need to examine the tables that are present in the database. We are interested in the 'Customers' table. So, we select it and then click on the Add button. Clicking on the Add button results in the display of a graphical block in the background, as shown in screen 2.12. As we are not interested in any more tables from the database, we select the Close button.

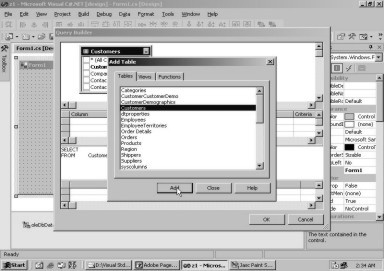

Screen 2.12	Screen 2.13

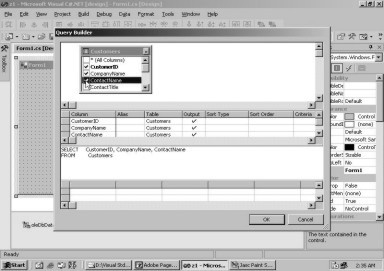

The screen now gives a clear indication that the graphical block refers to the columns in the table. We chose the first three fields, i.e. CustomerID, CompanyName and ContactNameby by selecting the relevant check boxes. Once this is done, notice the changes in the screen. We have depicted this in screen 2.13. This screen displays 4 panes. The first pane contains the tables with their fields. Presently, we are interested in working with a single table. The second pane explicitly displays the selected fields; while the third pane is an SQL Select statement that is generated, based on the fields selected. This statement is given below:

SELECT CustomerID, CompanyName, ContactName

FROM Customers

The fourth pane is blank. We will discuss it at an appropriate time. Click on the OK button and you will come to screen 2.14, where the SQL statement is clearly visible.

Screen 2.14

The power of SQL comes to the fore, when there are multiple tables. The word SELECT in SQL, is the only command that can be used to retrieve data from a database. This command is then provided with the fields from the table. The word FROM is a reserved word, and is always followed by the name of the table. In our case, it is Customers. We leave it upto you to decide whether you would like to write the above SQL statement yourself, or you wish to hire the services of the Query Builder, to do it for you. Click on the Next button to proceed to the next screen.

Screen 2.15

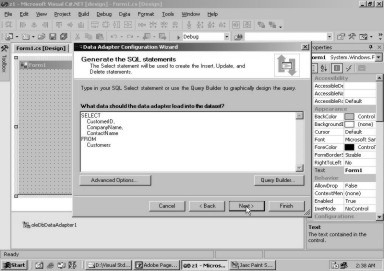

A click on Next button brings up screen 2.15, which distinctly indicates to us that everything went off well. The Adapter has created the following:

• The Select statement, to extract data from the database.

• The Update statement, to make changes in the data of the database.

• The Insert statement, to insert data into the database.

• The Delete statement, to delete data from the database.

Screen 2.16

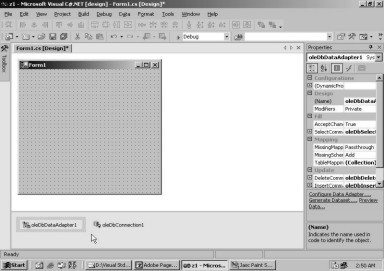

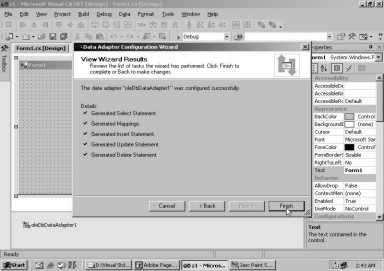

Clicking on the Finish button, brings us to screen 2.16. The wizard not only creates an Adapter object, but also a Connection object. Visual Studio.Net names the Adapter object as oleDbDataAdapter1, and the Connection object as oleDbConnection1. All is not over yet, as we have still to create another object that will store all the data that is to be retrieved. This new object or container is called a DataSet.

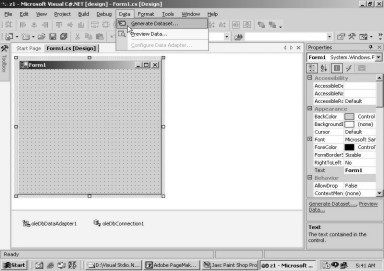

To create a DataSet, we simply click on the Data menu and select the Generate Dataset menu option, as is seen in screen 2.17.

Screen 2.17

This is one menu option that does not hold too many options. After we click on this first option, a dialog box gets displayed on the screen, as we see in screen 2.18.

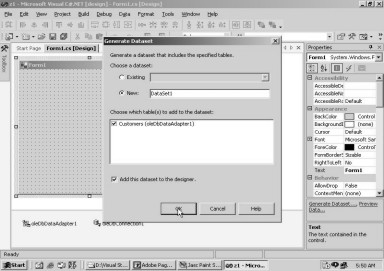

Screen 2.18

The first question that is always tossed at us is, whether we want to reuse an earlier created data set, or we wish to create a new one.

Bear in mind that Visual Studio.Net would like you to reuse things, so that you do not commit mistakes, while re-creating them over and over again.

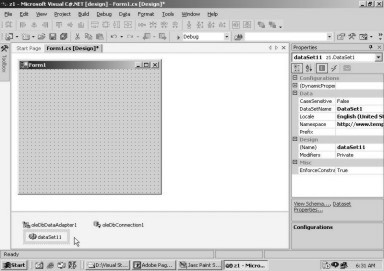

The dialog box asks us to enter the name of the DataSet. DataSet1, which is the name that is specified here, has to be provided at the time of referring to the DataSet. So, you need to commit it to your memory. Further, a list of tables that this data set would comprise of, is provided in the next block.

Presently, only the Customers table is available. So, DataSet1 refers to this table. However, a DataSet object can represent a large number of tables.

A list of tables associated with the Adapter, is displayed in this block. The checkbox labeled as 'Add to Designer' is left checked, and then we click on the OK button. This transports us to screen 2.19.

Screen 2.19

Upto this point, the DataAdapter control has created the Connection control, and the DataSet control has used a table from the DataAdapter.

As the next step, we select Windows Forms in the toolbox window, in order to see the Forms based control. Then, we choose a data grid object and drag and drop it onto the form. This is clearly seen in screen 2.20.

Screen 2.20

The screen displayed, has the control enlarged vertically and horizontally, in order to facilitate the display of more data in the data grid control. Press F5 to run the program.

Screen 2.21

At this stage, screen 2.21 shows up, which is an empty data grid, with neither any column names nor any data. This is a consequence of our not having specified the source from where the data is to be retrieved, in the data grid control.

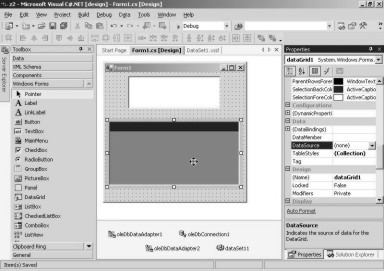

Close the window and select the data grid in the Design Form. Thereafter opt for the Data Source property.

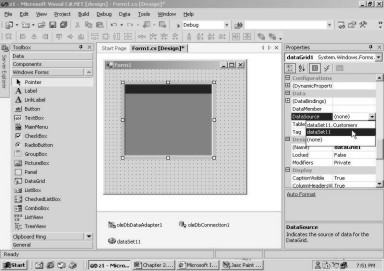

When you click on the down arrow, a list of DataSets is displayed. Presently, our screen 2.22 depicts only one data set, which is the one that we had created most recently.

Screen 2.22

Thus, we have clearly specified that the data grid control will use the data, which is stored in the dataset named dataSet11. Also, note that the form design changes, to display a + sign within it, screen 2.23. Let us now run the program to see what transpires.


Screen 2.23	Screen 2.24

The screen 2.24 displays a plus sign, which is similar to what was seen in the Form Design. Once we click on the + sign in this screen, the + sign becomes a - sign and the label of Customers is displayed, as shown in screen 2.25.


Screen 2.25	Screen 2.26

The label Customers is displayed as an aftermath of the fact that, we have only one table called Customers in the DataSet. In the situation where we would have had more tables, all of them would have been displayed, one below the other.

Selecting or clicking on the hyperlink of Customer will lead us to screen 2.26, where three fields are displayed, with each of them having a value of Null. The three fields are the three column names that we had chosen while generating the SELECT statement. Also, the title is shown as DataSet1, and not as dataSet11.

To display the data in the datagrid control, first close the running application, and then, make sure that the Data grid is selected.

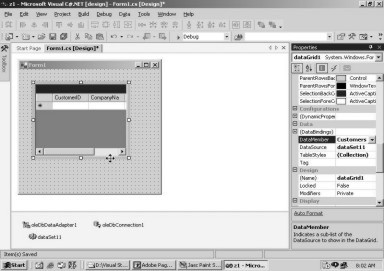

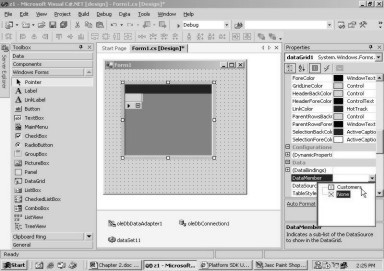

If you select the property of DataMember and click on the down arrow, you will see screen 2.27.

Screen 2.27

The Data Member displays a list of tables. We can see only one table, since only a single table named 'Customers' is present in our dataset. This Data Member property can be selected, only after we have specified a data set as a Data Source.

Select the Customers table and notice the change in the Data Grid on the form, this is shown in screen 2.28.

Screen 2.28

Thereafter, run the application and you will come across screen 2.29.

Screen 2.29

The + sign is no longer visible, and the list of tables has also vanished. All this can get pretty confusing for a user. The data grid directly displays the columns from the Customer table. This is because, the Data Grid control uses the DataSource member to find the tables contained in it, whereas the DataMember property, when initialized, refers to a specific table in the dataset.

Leaving the DataMember property blank, will again result in a display of a list of available tables to select from.

The columns in the field still depict null values. In order to display data, we first take a button from the toolbox and then drag and drop it onto the form.

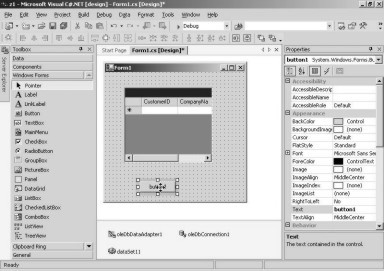

Screen 1.30

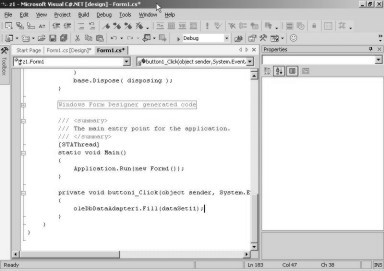

Then, we double-click on the button to reach the Code Painter, where we write the following line of code:

oleDbDataAdapter1.Fill(dataSet11);

The Adapter control has a function called Fill, which accepts a data set as a parameter. It then associates data with this data set. As of now, the data set control does not display any data. This is because the data set control is not aware of the data that it would receive.

Screen 1.31

It is the Fill function from the Adapter class, which connects to the database using the connection control. It then retrieves data from the database and passes it to the data set. Once the data set obtains the data, it can then pass it on to the Data Grid for display.

Pressing F5 would initially display the columns without any data. When we click on the button with the default label button1, the Fill function does its job and populates the data grid. Therefore, the screen displays the data grid with values obtained from the customer database, as seen in screen 2.32.

Screen 2.32

One simple click executes the task of loading the data grid. It cannot get any easier!

The next task on hand is to allow the user to change the data. Obviously, any such change should be reflected in the database too. To achieve this goal, we once again introduce a button from the toolbox, and add the following line of code to it:

oleDbDataAdapter1.Update(dataSet11);

In the Adapter control, there is another function called Update, which is similar to the Fill function. This function takes the data associated with a data set and changes it permanently in the database, thereby, updating the database.

On running the application, we see two buttons and the datagrid control. The first button is used to display the data from the database, while the second one is used to update the database. Select the second record and change the name of the company to 'Vijay Mukhi'. Thereafter, click on the button labeled button2. This is shown in screen 2.33.

Screen 2.33

Clicking on button2 does not achieve anything stupendous. So, how in the world are we to confirm that the database has been updated? To do so, close the running application and re-run it. On doing so, the second record will display the freshly modified value as 'Vijay Mukhi'.

There are a myriad other things that we can do with a data grid. For example, sorting a column, reversing the order of the sort, etc. Everything regarding a data grid can be subjected to change. You can take our word for it!

Let us now proceed to another data handling example, which demonstrates the Master-Detail Relationships.

We create a new project by selecting File - New - Project. In the New Project Dialog Box, as usual, we choose Visual C# projects in the Project Types pane, and Windows Application in the Templates pane. Then, we name the application as z2 and maintain the location as C:\vijay. Click on the OK button to arrive at the Screen Painter. You should ensure that the ToolBox window is activated and the Properties window is visible.

In ToolBox window, click on the Data tab to select the OleDbDataAdapter control. As we had learnt a little while ago, the Adapter Wizard gets activated when the Adapter control is dragged onto the Form.

The first screen may be ignored. So, you can simply click on the Next button. Unlike the earlier case, where a connection was established to the NorthWind database, we now choose a different database named the Pubs database. Therefore, click on New Connection. The user name will be 'sa' with a blank password and Pubs will be the database for the server. Finally, to ensure that the right settings have been selected, click on Test Connection. Once the connection test proves successful, click on OK. We would request you to note down the name assigned to the connection, since it will be used from time to time in the application.

Clicking on the Next button will take us to the Query Type dialog box. Just as before, we choose the default SQL statements and then click on Next. In the text area, we need an SQL statement, which you can either write yourself or employ the services of the Query Builder for it. Either way, the final SQL statement should be as follows:

SELECT pub_id, pub_name FROM publishers

The above SQL retrieves the id and the name of the publisher from the table called 'publishers'. Finally, clicking on Finish will create both, an Adapter and a Connection object. We however do not stop at this. Click on the OleDbDataAdapter control again and drag and drop it into the screen painter. This will create one more Data Adapter object called oleDbDataAdapter2, and it will again display the wizard.

The first opening screen can be skipped without any harm done. So, click on the Next button. The connection that has been established to the pubs database, i.e. 'VMUKHI.pubs.dbo' in our case, is displayed in the listbox. In case it is not displayed as selected, click on the down arrow of the listbox and then select it. We would be employing the same connection. Therefore, there is no point in recreating another connection object.

Click on the Next button, since we would like to use SQL statements, the default option, while accessing the database. Clicking on the Next button brings us to a screen where we have to specify the SQL Select statement. Enter the statement as follows:

SELECT title_id, title, pub_id, price FROM titles

The pubs database has a table called 'titles', from where the title id of the book, its name, the publisher id and the price are to be retrieved. Like before, we can either enter the query ourselves or use the Query Builder.

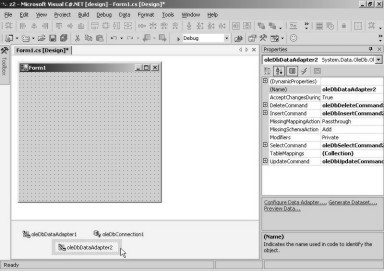

Finally, click on the Finish button. On doing so, you will witness something strange i.e. the adapter has not created any new connection. This is because, the same connection is being reused.

Screen 2.34

The next step in sequence is, to create a Data Set Object or a Container for these two tables. So, we click on the Data Menu and choose Generate Dataset.

Screen 2.35

In the dialog box, we select the New radio button, and make sure that both the tables are selected, as shown in screen 2.35. The name of the adapter changes, depending upon the table that is involved. The checkbox next to the 'Add this database to designer' option, is checked by default, and we do not intend to change it.

Visual Studio.Net maintains a list of all the files generated for the current project. This is visible in a window called the Solution Explorer. Click on the View menu and then Solution Explorer in order to display this window, as is evident in the screen 2.36.

Screen 2.36

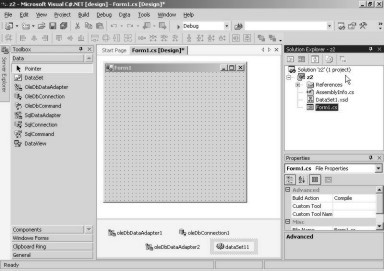

The Solution Explorer lists out the files contained in the project or solution.

Solution z2 contains the following files:

• A form named Form1.cs.

• A C# program named AssemblyInfo.cs.

• The References, which talks about all the things that the project refers to.

• An xsd, having the same name as the DataSet.

While generating a DataSet, an xsd file is created, which stores information about the tables obtained from the respective adapters. Thus, the file DataSet1.xsd is created. Double clicking on the DataSet1.xsd in the Solution Explorer, results in the display of screen 2.37.

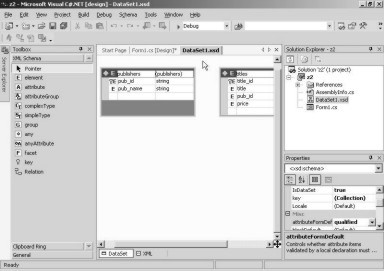

Screen 2.37

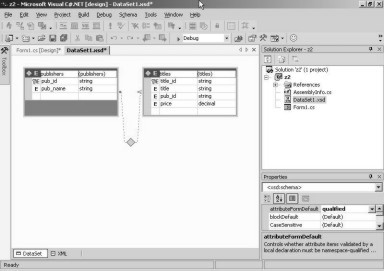

The above screen shows fields of the two tables belonging to the DataSet. The 'key' icon indicates the primary keys. A primary key in a table is a field that contains unique values, thus facilitating identification of different records. In the publishers table, each publisher is given a unique id named pub_id, while in the title table, the unique id is the title_id of every book.

The 'titles' table contains records for every book, or the title that the book publishing company publishes. Different books are bound to have different publishers. Hence, it makes no sense to insert all the details about each publisher with each book. At times, multiple books are published by the same publisher. As a result, we would be storing the same data pertaining to a publisher over and over again, leading to redundancy.

While storing the details of the publishers in the publishers table, a unique publisher id is provided to every publisher. In the 'titles' database, only the publisher id is provided with each book, along with other title details.

This approach is called a Master-Detail relationship or a Parent-Child Relationship, where 'publishers' is the parent and the 'titles' is the child. It is also commonly referred to as a 'One to Many Relationship', reiterating the fact that one publisher may publish many books.

If you are observant enough, you would have noticed that the ToolBox now carries a new tab called XML Schema. Select the Relation object and drag-and-drop it onto the window. By merely dropping it onto the window, an error will be generated in a message box, conveying that the object cannot be placed at that position.

A Relation object has to be dragged-and-dropped over the child table, which in this case, is the 'titles' table. On doing so, you will arrive at the screen shown in screen 2.38.

Screen 2.38

The name assigned to the relation is publisherstitles. You may change it if you so desire, but you must commit it to memory, since it will be needed while referring to this relation object.

Let us take a re-look at what we have accomplished so far. The parent table is 'publishers' and the child table is 'titles'. The field pub_id is a primary field in the 'pubs' table, whereas, the field title_id is the primary field in the 'titles' table. The pub_id field links both the tables. In the titles table, the pub_id field is termed as a foreign key.

Screen 2.39

After clicking on OK, a new screen that gets displayed is shown in the screen 2.39, where we see a relation object joining them. You may observe that the parent table named 'publishers', contains a circle; while the 'titles' table has three arrows pointing towards it. This symbolizes a 'one to many relationship'.

In the Solution Explorer window, double click on the file Form1.cs, in order to revert back to the Screen Painter. In the ToolBox, there is a listbox in the category of Windows Forms. Select the listbox and drop it onto the form painter. The screen 2.40 displays the form.

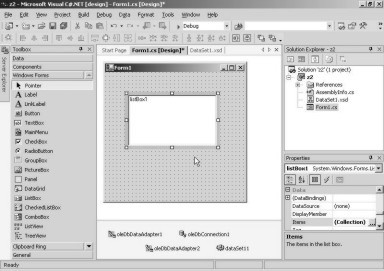

Screen 2.40

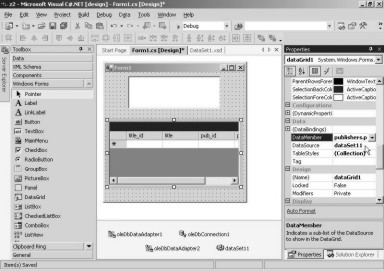

The properties window of the listbox has a property called Data Source. Clicking on the down arrow, displays a list of data sources, as is apparent in screen 2.41. We choose the data set named dataSet1.

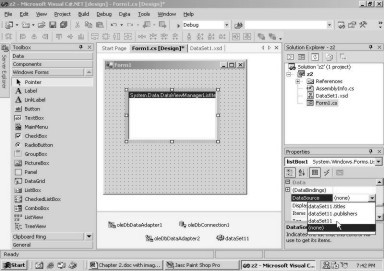

Screen 2.41

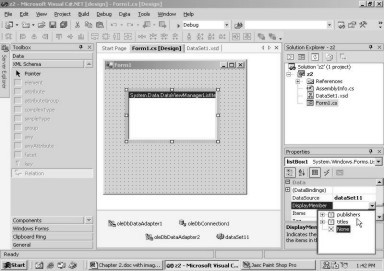

A data set comprises of multiple sets of data. To clearly select a specific data table, we must initialize the Data Member appropriately. The listbox displays two tables, i.e. publishers and titles. As we want a list of publishers to be displayed in the listbox, we expand the publishers node by clicking on the + sign. Screen 2.42 and screen 2.43 depict the steps that are involved.


Screen 2.42	Screen 2.43

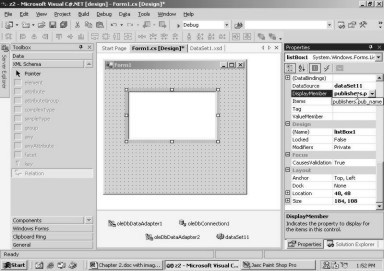

As it is the name of the publisher, and not the publisher id, that we want to see displayed in the list box, we select the pub_name field. The property Display Member now shows publishers.pub_name (i.e. tablename dot fieldname). The screen 2.44 demonstrates this syntax.

Screen 2.44

Now, make sure that the form is selected and then double click on it. Double clicking on any object transports us to the Code Painter. Insert the following lines of code at the cursor position:

oleDbDataAdapter1.Fill(dataSet11);

oleDbDataAdapter2.Fill(dataSet11);

This code gets executed whenever the form loads on. The Fill statement, as we had learnt earlier, fills up the Dataset with data. A point of significance here is that, each adapter fills up one table in the data set.

When we run the program by pressing the F5 key, we see a listbox that contains the names of publishers from the 'publishers' table. This is shown in screen 2.45.

Screen 2.45

Close the running application, in order to arrive at the Screen Painter. Select a data grid from the Windows Form category in the toolbox, and thereafter, drag-and-drop it onto the Screen Painter. You should size the data grid and listbox as shown in screen 2.46.

Screen 2.46

Then, select the Data Source property and choose the data set dataSet11. The data member is initialized to the value of publishers.publisherstitles. You may remember that, we had created a relation object named publisherstitles. These changes are shown in screen 2.47. As a consequence, with every change in the name of the publisher, the records retrieved from the titles table shall also vary.

Screen 2.47

On running the application, a form window similar to the one shown in screen 2.48 will show up. The screen 2.49 reveals that the publisher 'New Moon Book' has published 5 books, whereas, the publisher 'Algodata Infosys' has published 6 books.


Screen 2.48	Screen 2.49

The above is an ideal example to demonstrate a parent-child relationship, where every publisher in the listbox, is displayed along with its corresponding titles in the data grid. The important point here is that, the DataMember property of the DataGrid points to the relation object, since it stores the details of the relationship.
