Visual Studio.Net - Controls and Add-ins

Add-ins

This section of the book appertains to extending Visual Studio.Net using Add-ins. The issue of what is an Add-in and what we could do with it, is grist for another day. It should suffice to say that the Add-in is the launch pad for any programmer who wishes to extend Visual Studio.Net in myriad ways.

Everything about Visual Studio.Net can be transformed or modified by the programmer. Visual Studio.Net is bound to reign as the most extensible product in the world for a considerable span of time. This product can be extended using the principles of Automation.

The first step in this direction leads to Add-ins, a point from where we shall initiate our exploration. Not all of us are blessed with exceptional brilliance and grasp. Keeping this deficiency in mind, we shall press forward one step at a time.

When the Visual Studio.Net program starts normally, it displays the Start Page and the menu option of Tools. Click on this menu option to arrive at screen 7.1.


Screen 7.1	Screen 7.2

Contingent upon how you configure your copy of Visual Studio.Net, your output is bound to vary. In all likelihood, you would not encounter a screen similar to ours. However, you shall surely come across the menu option of Add-In Manager, which is to be clicked on. This result of doing so is evidenced in screen 7.2.

An active project is required to work with Add-ins. Therefore, a new project has been created ahead of time. To reiterate, the basic format of the dialog box remains the same, although the contents of your screen may appear disparate from ours. Our screen projects an Add-in that has been installed previously.

In order to install another Add-in, certain fundamental criteria need to be conformed to, so as to enable the Visual Studio.Net framework to recognize it, and to thereafter keep track of it. Any program running under Windows, including Windows itself, maintains its state by storing data in a hidden file called the registry. This file subsists on every hard disk of every computer that has the Windows operating system installed on it.

This registry file has its own unique format. Neither is it an XML file nor an ASCII file. The registry simply stores name-value pairs in a specific format to facilitate quick and speedy retrieval. There exists a set of .Net classes that permit us to read and write to the registry. Furthermore, there is a program called Regedit, which allows access to the data in the registry.

However, a file with a .reg extension has to be created in order to enter data manually. The contents of this file must necessarily be in name-value pairs. The program when executed Regedit displays the registry data, as seen in screen 7.3.

Screen 7.3

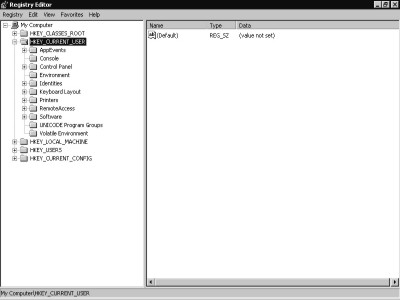

The program window displays queer names such as HKEY_CLASSES_ROOT, HKEY_CURRENT_USER, etc. These names represent categories by means of which, the name-value pairs can be systematically organized. This concept is akin to having namespaces to organize C# classes. What remains a mystery is the motive that impels names to begin with the word HKEY!

It is the registry that has provided the foundation for Windows since its inception. HKEY_CLASSES_ROOT simply serves as a category name or a key under which name-value pairs can be stored. The same applies to the key HKEY_CURRENT_USER, which in turn, houses-in some more keys within itself.

Screen 7.4

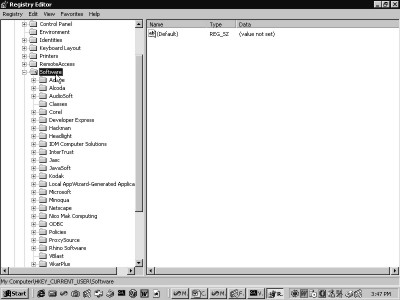

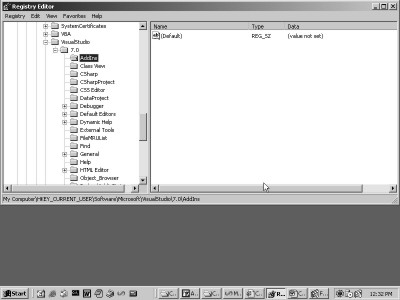

One of the keys is named as Software. It has a plus sign, which when clicked on, unravels a large number of keys from the Software category. The key named Microsoft contains a host of other keys. Clicking on the plus sign brings forth the keys within it.

Visual Studio evinces two keys, viz. 6.0 and 7.0. This amply fortifies the fact that internally, Visual Studio.Net is recognized as Visual Studio 7.0. Clicking on the plus sign exhibits a sub-key named Add-ins, which has no keys at all, as seen in screen 7.5. Now, add a name-value pair to this level.

Screen 7.5

a.reg

REGEDIT4

[HKEY_CURRENT_USER\Software\Microsoft\VisualStudio\7.0\AddIns\ aa.Connect]

"FriendlyName"="vijay"

"Description"="C#"

Enter the above contents in the ASCII file named a.reg and store it in the folder c:\a2. Since we are seasoned warhorses in the world of computers, we use the DOS box to execute the file a.reg. This can be simply achieved by giving the command

C:\a2>a.reg {Enter}

If you have an aversion to the DOS box, you could use the File Manager and simply double-click on the file a.reg. A message box bobs up, as shown in screen 7.6. This eventuates since Windows inherently believes that the reg file was clicked upon inadvertently.


Screen 7.6	Screen 7.7

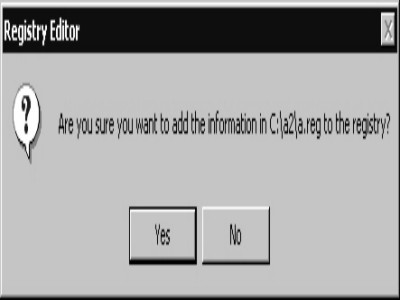

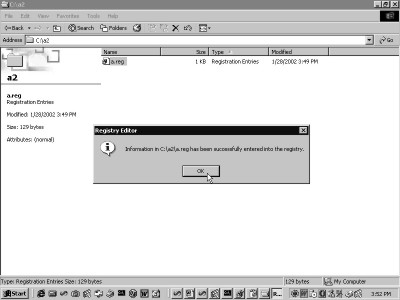

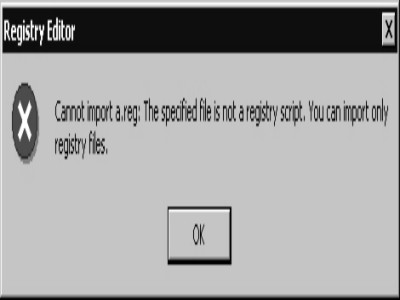

Clicking on the Yes button results in the execution of some activity internally, and finally, the message box confirms successful registration, as depicted in screen 7.7.

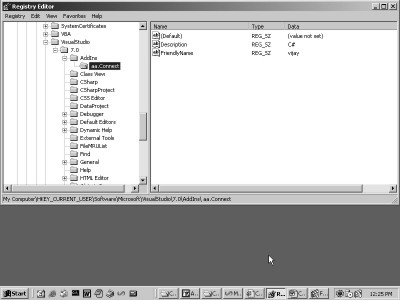

Refresh the Regedit window. The Add-ins key now shows a plus sign. Click on it to view the updated window, as has been brought out in screen img193. The key that is added is aa.Connect, which now holds two name-value pairs, as is apparent in the right window pane. The names are Description and FriendlyName, having values vijay and C#, respectively.


Screen 7.8	Screen 7.9

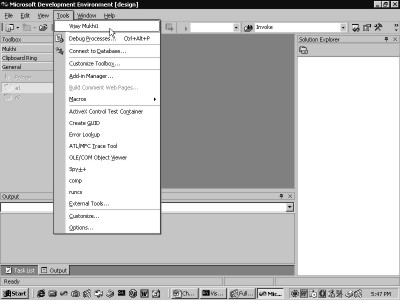

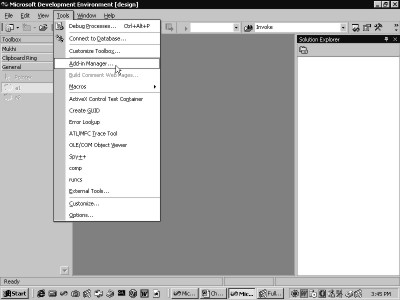

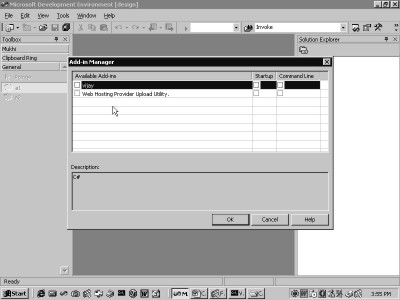

We now hark back to Visual Studio.Net and click on the menu Tools, Add-in Manager. This projects the Screen 7.9.

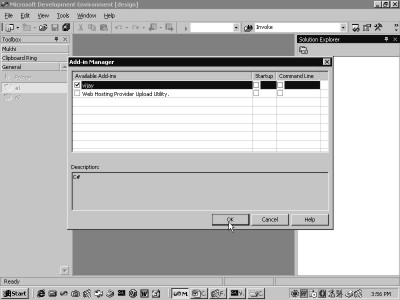

The window now displays the freshly added Add-in called vijay, with the Description of C#. Thus, from the perspective of the Add-in Manager, an Add-in is merely a registry entry.

Let us now fathom the inner workings of the file a.reg. (If the Add-in is not visible, run the command regedit a.reg). The Regedit program deems a reg file to be valid only if it starts with the word REGEDIT4 in the first line. To substantiate this logic, delete this line from the a.reg file. An error gets reported, as is evident in screen 7.10.

Screen 7.10

In the case of ASCII files, a specific file format needs to be adhered to, in order to maintain the validity of the file format. The Regedit program employs the word REGEDIT4 as an identification tag for registry files. Blank lines are disregarded. Therefore, no error is generated. What ensues is the name of the key enclosed within square brackets. The full path name of the key under which the new entry is to be added, is stipulated in the form of name-value pairs.

Thus, the reg file has the starting key HKEY_CURRENT_USER, which culminates in aa.Connect. This results in the Add-ins key acquiring a sub-key called aa.Connect. The name-value pairs are stipulated below the name of the key. Here, the name appears first, i.e. FriendlyName, followed by an 'equal to' sign, and finally, followed by the actual value, i.e. vijay.

One of the major detriments here is that there are a number of feckless rules. For instance, the name-value pairs have to be specified within double inverted commas. However, even if this rule is not complied with, no errors are reported. All the same, the name-value pairs get overlooked by the Regedit program.

The name does not have to end with Connect. But, since all the Add-ins have resorted to this word, we too decided to follow suit, probably as a good luck charm. We now return to the Add-in Manager in Visual Studio.Net. Here, the name of the Add-in is vijay. This is because, the name FriendlyName in the registry, has a value of vijay, while the value of the name Description is used as a help.

Thus, as far as the Add-in Manager is concerned, an Add-in is merely a registry entry. The word aa.Connect is called a ProgID. The ProgID bears considerable significance, which we shall touch upon in a short while. Conclusively, all that the Add-in Manager does is, to hunt for sub-keys, by looking under the key HKEY_CURRENT_USER \ Software \ Microsoft \ VisualStudio \ 7.0 \ AddIns. Currently, it ignores the name or the ProgID of the keys, but it displays the FriendlyName of each one of them.

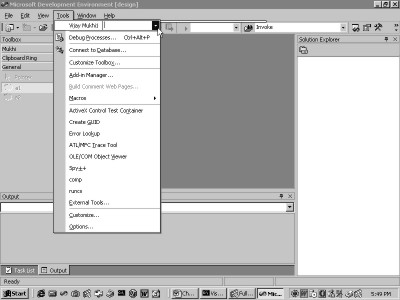

Select the Add-in vijay by clicking on the checkbox, as is shown in screen 7.11, and then, click on the OK button. An error gets reported as shown in screen 7.12, since the Add-in has not been entered yet.


Screen 7.11	Screen 7.12

Here, we select the option of No, because had we chosen the option of Yes, we would have had to run the reg file a.reg yet again. Thus, here, we have merely been able to convince the Add-in Manager that vijay is a valid Add-in. Let us now actually start writing the Add-in.

Screen 7.13

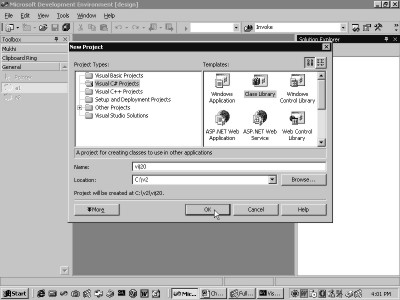

An Add-in is nothing but a dll. Therefore, a simple project is created, which results in a dll. This is achieved by clicking on the menu-options File, New, Project. Then, you need to choose Visual C# as the project type and select Class Library Template as the Template. The project is named as vij20.

using System;

namespace vij21

{

using System.Runtime.InteropServices;

[GuidAttribute("66ABBE67-F973-45E6-BD09-A18877323888"), ProgId("aa.Connect")]

public class zzz

{

}

The class library template builds a dll, which could have also been created manually with effortless ease. Replace the existing code with the code displayed above.

As usual, the program commences with the namespace, since Microsoft insists on having the entire code enclosed within a namespace. The namespace is called vij21. There is no co-relation between the name of the dll and that of the namespace. Therefore, we have opted for different names for the dll and the namespace.

A simple class called zzz is placed in the namespace. It is prefaced with an attribute called GuidAttribute, which belongs to the namespace System.Runtime.InteropServices. The attribute is assigned two parameters; a 16 byte number and a name or a ProgID, viz. aa.Connect. This introduces a link with the a.reg file, where the ProgID is again named as aa.Connect. Thus, to register an Add-in, we merely have to specify the ProgID as aa.Connect.

Eons ago, Microsoft introduced a concept called Activex/OLE/COM. Although this is not the most opportune time to delve into the details of COM, it suffices to say that a COM object is identified by a 16 byte or 128 bit number, which distinguishes it from all the other existing COM objects. A 16 byte number is unique across time and space, since it is truly colossal in size.

The class zzz is assigned a unique number by placing the GuidAttribute in front of it. This number is also known as a GUID or a UUID. The acronyms GUID and UUID stand for 'Globally Unique Identifier' and 'Universally Unique Identifier', respectively.

There are programs available with Windows, which can generate a GUID of this ilk. However, we have chosen a number at random. There is a project template that creates an Add-in, which in turn generates these GUIDs mechanically. The format for writing a GUID is also predetermined.

Thus, so far, the class zzz has been assigned a unique 16 byte number, in order that it may be able to interoperate with COM. The ensuing step is to add some registry entries, so that class zzz gets registered as a COM class.

The class zzz has been tagged with the ProgID of aa.Connect and assigned a GUID. The Add-in Manager scans the registry for a ProgID called aa.Connect. Then, it scouts for the assembly/dll vij20.dll, which contains the class zzz. We are truly clueless about the precise registry entries that are required to be added to the registry for COM interoperability.

Click on the project name vij20 in the Solution Explorer with the right mouse button, as demonstrated in screen 7.14. (If the Solution Explorer is not active, choose the menu option View, followed by the Solution Explorer.)


Screen 7.14	Screen 7.15

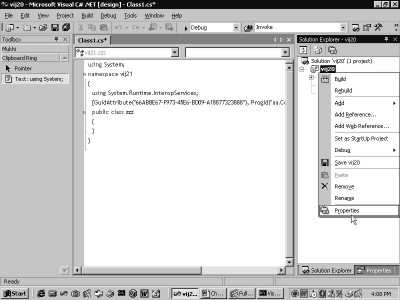

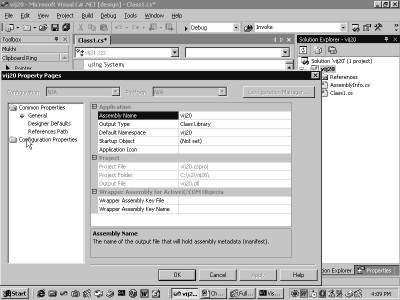

In the menu, select the last option of properties to arrive at the screen 7.15.

Here, the name of the dll is denoted as vij20 along with several other details. The options that are of interest are located within the item Configuration Properties. When you double click on it, the options that show up are displayed in screen 7.16.

Screen 7.16

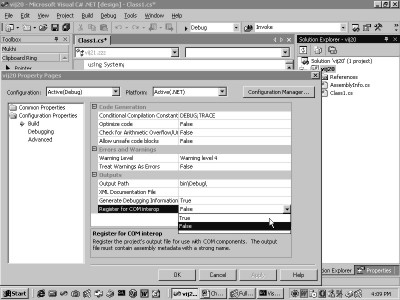

The option that we are in quest of, viz. 'Register for COM interop', exposes itself. The default value is False. Click on the drop-down list and set the value to True.

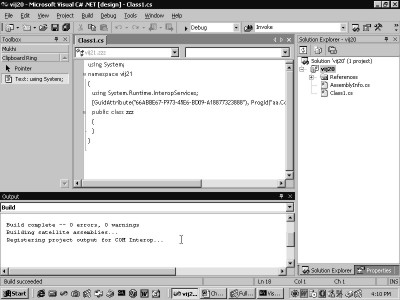

Now, build the project by pressing the key combination of Ctrl-Shift-B. A few extra lines get added in the Build window, which postulate that a program is being executed in order to add some registry entries.

Screen 7.17

After having registered the class zzz as a COM object, close Visual Studio.Net and restart it. The application must be closed and reloaded since the Add-in and the active project happen to be one and the same entity. Also, if the dll is created without reloading the application, multiple errors materialise.

Now, click on Tools, Add-in Manager and select the Add-in called vijay. Click on the OK button. The screen 7.18 clearly brings to view a different error that has been generated by the Add-in Manager.

Screen 7.18

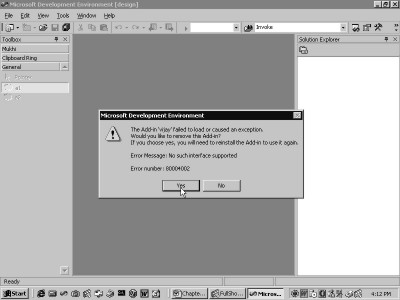

The class zzz has been derived from an object, whereas it should have actually been derived from an interface. Hence, the error is generated.

namespace vij21

{

using System.Runtime.InteropServices;

using Extensibility;

[GuidAttribute("66ABBE67-F973-45E6-BD09-A18877323888"), ProgId("aa.Connect")]

public class zzz : Extensibility.IDTExtensibility2

{

}

Add two more lines to the above program. Firstly, include a namespace called Extensibility, and secondly, derive the class zzz from the interface named IDTExtensibility2. When we attempt to build the project, two errors emerge. The C# complier feigns ignorance about the assembly containing the namespace Extensibility.

While using the C# complier, the /R option has to be specified with the assembly name. However, in the Visual Studio.Net framework, the reference has to be added by clicking the right mouse button on the References item, as seen in screen 7.19. Thereafter, you need to choose the Add Reference option. This brings us to screen 7.20.


Screen 7.19	Screen 7.20

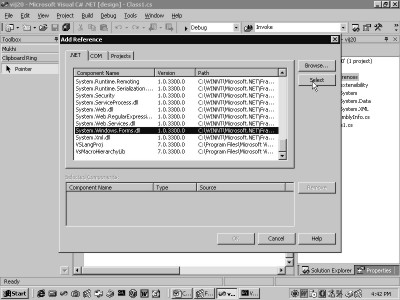

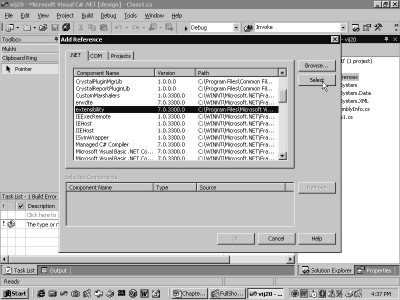

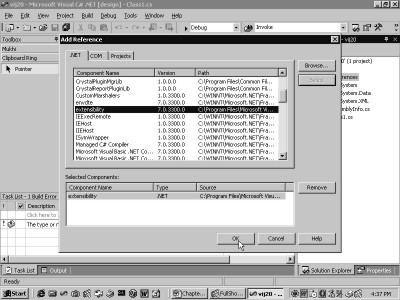

The window that pops up encapsulates a large number of namespaces. Scroll down the list and select the one named extensibility. Double click on it to select it, as shown in screen 7.21. The namespace that is selected gets placed at the bottom. Finally, click on the OK button and close the dialog box. The window undergoes a transformation, as seen in screen 7.22.


Screen 7.21	Screen 7.22

The references item displays the Extensibility namespace, which has been added recently. It also contains the three namespaces of System, System.Xml and System.Data, which are already present by default. Now, build the project.

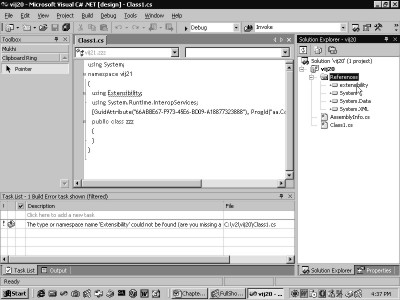

An error was bound to occur. It is because the interface IDTExtensibility2 encompasses five methods, whereas the project has not implemented even a single one of these.

namespace vij21

{

using System.Runtime.InteropServices;

using Extensibility;

[GuidAttribute("66ABBE67-F973-45E6-BD09-A18877323888"), ProgId("aa.Connect")]

public class zzz : Extensibility.IDTExtensibility2

{

public void OnConnection(object application, Extensibility.ext_ConnectMode connectMode, object addInInst, ref System.Array custom){}

public void OnDisconnection(Extensibility.ext_DisconnectMode disconnectMode, ref System.Array custom){}

public void OnAddInsUpdate(ref System.Array custom){}

public void OnStartupComplete(ref System.Array custom){}

public void OnBeginShutdown(ref System.Array custom){}

}

Insert the above code in the Code Painter to eliminate the errors. Then, select the Add-in named vijay from the Add-in Manager dialog box. Nothing at all happens! Well, this indeed is a good omen and calls for a celebration, since it means that everything has gone off smoothly. It also goes to prove that the dll named vij20 has been recognized as a full-fledged Add-in.

The next task is to identify the particular functions that get called in the Add-in by the Add-in Manager, and also, when exactly do they get called. For this purpose, a static function named Show from the class MessageBox is utilized. This class is present in the namespace of System.Windows.Forms. Hence, the assembly has to be added to the Reference section.

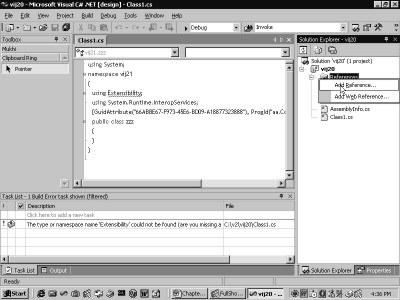

As was done earlier, click the right mouse button on the References item. Then, choose Add Reference, and thereafter, scroll down to the end of the dialog box to select the option of System.Windows.Forms. Then, double click on the namespace, as depicted in screen 7.23; and finally, click on OK.

Screen 7.23

namespace vij21

{

using System.Runtime.InteropServices;

using Extensibility;

using System.Windows.Forms;

[GuidAttribute("66ABBE67-F973-45E6-BD09-A18877323888"), ProgId("aa.Connect")]

public class zzz : Extensibility.IDTExtensibility2

{

public zzz() {

MessageBox.Show("Constructor");

}

public void OnConnection(object application, Extensibility.ext_ConnectMode connectMode, object addInInst, ref System.Array custom)

{

MessageBox.Show("OnConnection");

}

public void OnDisconnection(Extensibility.ext_DisconnectMode disconnectMode, ref System.Array custom)

{

MessageBox.Show("OnDisconnection");

}

public void OnAddInsUpdate(ref System.Array custom)

{

MessageBox.Show("OnAddInsUpdate");

}

public void OnStartupComplete(ref System.Array custom)

{

MessageBox.Show("OnStartupComplete");

}

public void OnBeginShutdown(ref System.Array custom)

{

MessageBox.Show("OnBeginShutdown");

}

What should follow next is the introduction of the constructor and the Show function in the six functions. Now, whenever any of the functions gets called, the Message Box projects itself.

Even though we are convinced that you require no further reminders, we still reiterate that you should close Visual Studio.Net, restart it and then, build the project. Now, select the Add-in named vijay from the Add-in Manager, and click on the OK button. The screen shows a message box, as is obvious from screen 7.24.

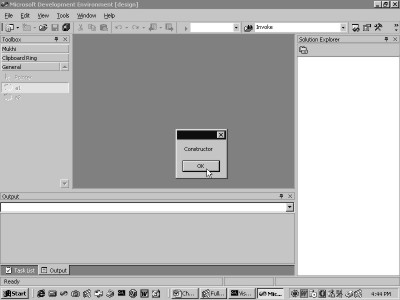

Screen 7.24	Screen 7.25	Screen 7.26

The Add-in Manager loads the Add-in, and in the process, it beckons the constructor. Clicking on OK bespeaks of the function OnConnection being called. This is followed by a call to the function OnAddinsUpdate. These functions have been featured in screens 7.25 and 7.26.

When an Add-in is loaded, the first function to be called is OnConnection. There are three plausible means by which an Add-in can get loaded in Visual Studio.Net. The first method is by the application of the Add-in Manager, as illustrated above. The second method pertains to checking of the Startup checkbox in the Add-in Manager. The third method is by setting the value of the Connect property of the Add-in to True.

Most Add-ins place the code for initialization in the function OnConnection. The second function to be called is OnAddInsUpdate. This function is summoned whenever a modification is effected in the list of Add-ins in the Add-in Manager. This could occur whenever an Add-in is either loaded or unloaded.

There are alternate means of loading and unloading an Add-in besides resorting to the use of the Add-in Manager. One such method includes the usage of a button on a toolbar named Command.

There is a distinctive feature of Add-ins that needs to be comprehended. If one more Add-in is loaded, the function OnAddInsUpdate gets called for the newly loaded Add-in, as well as for all other Add-ins that are already loaded.

When any Add-in is loaded or unloaded, the function OnAddInsUpdate is called for all the Add-ins that are already loaded. This is primarily done to apprise the Add-ins that a change has occurred. Thus, the OnConnection method gets called only once, whereas the OnAddInsUpdate function gets called on multiple occasions.

On closing Visual Studio.Net, the function OnBeginShutdown gets called. This event gets called whenever Visual Studio.Net begins to shutdown. Further, this function gets called only if the Add-in is loaded in memory. Therefore, if some code needs to be called when a running application is shut down, it can be placed in this function. One such instance is when all activities that take place in a particular session need to be logged to a file on disk.

This function may be summoned more than once. To site an instance, it gets called when some program cancels the event of calling the Add-in, and also when the application shuts down. Thus, there is no guaranteeing the fact that the application would actually close after this function gets executed.

The last function to be called is OnDisconnection. This function is analogous to the OnConnection function. This function can be called in three different events. It can be attributed to the fact that an Add-in can be unloaded in three different ways.

The first is by un-checking the checkbox in the Add-in Manager; the second is by closing Visual Studio.Net; and the third is by resetting the Connect property of the Add-in object to False. The OnConnection function has a companion in OnDisconnection.

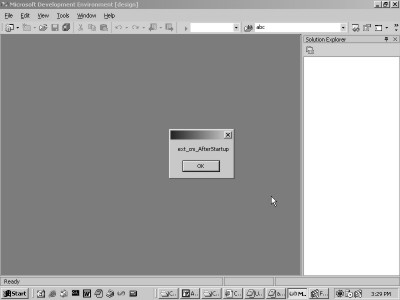

When Visual Studio.Net is restarted, it does not show any message box. You need to click on the menu Tools, Add-in Manager, in order to get a better drift of the Event Model. Then, select the checkbox of Startup for the Add-in vijay. Now, close and restart Visual Studio.Net.


Screen 7.27	Screen 7.28	Screen 7.29	Screen 7.30

The Constructor gets called first, as seen in screen 7.27; and then, the function OnConnection gets called, followed by the function OnAddinsUpdate. Subsequently, Visual Studio.Net gets loaded, and finally, OnStartupComplete gets called, as is evident from screen 7.30. This event is the last in the Add-in series and is an indication that the application has completed executing its startup code.

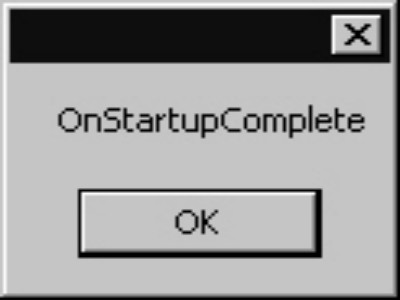

The function OnStartupComplete, which we discoursed about earlier, does not get called when the Add-in Manager calls the Add-ins. It is because the function gets called only once, when the Startup checkbox is checked. This function embodies code that gets executed after the application has been loaded. You may uncheck the startup option to validate its implications.

By now, we are sufficiently informed about the precise occasions when, and the frequency with which these functions get called from the class. Firmly grounded on this knowledge, we shall now venture forth to explore the vitals of Visual Studio.Net.

To begin with, let us build the same Add-in, but by employing a Wizard this time. Click on the menu File, New, Project. In this instance, choose the Other Project option, and within this option, select the Extensibility Project option. Then, select the Visual Studio.Net Add-in option in the second pane and name it as vij25, as demonstrated in screen 7.31.

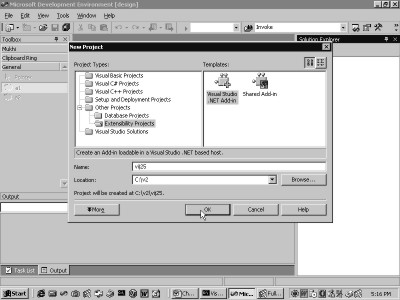

Screen 7.31

Once the OK button has been clicked upon, the Wizard screen emerges. The initial screen of the Wizard should always be disregarded. So, click on the Next button.

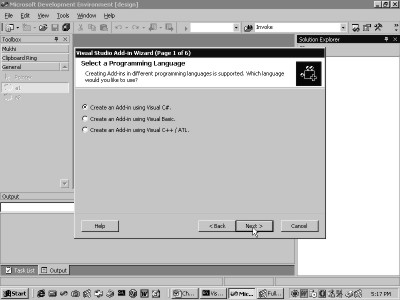

Screen 7.32 represents the first of six screens that constitute the Add-in Wizard. This screen determines the programming language in which the code of the Add-in is to be written. Three choices have been spread before us, viz. Visual C#, Visual Basic and Visual C++. We are content with the default option of Visual C#. So, click on the Next button to arrive at screen 7.33.


Screen 7.32	Screen 7.33

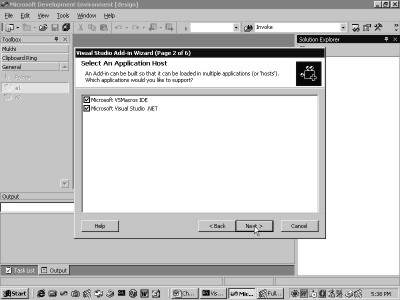

The Add-in can be loaded in two applications, viz. the Visual Studio.Net IDE, which is the environment that we are currently using; and in the IDE that is employed while writing macros. Both applications are displayed as selected. Since this is acceptable to us, click the Next button to arrive at screen 7.34.


Screen 7.34	Screen 7.35

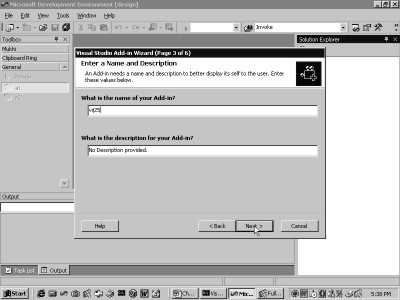

This screen poses the same two questions that apply to the a.reg file. The first question is with regard to the name of the Add-in, while the second question relates to the description. Change the name of the Add-in to vij25 and click on the Next button to arrive at screen 7.35.

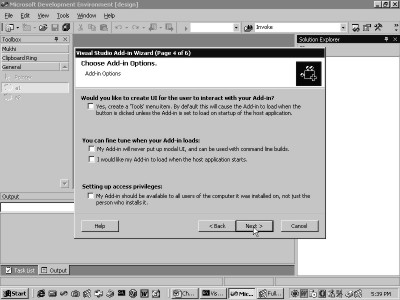

A few more Add-in options can be selected, as depicted in screen 7.35. We have taken a conscious decision not to opt for any of them, since we are opposed to augmenting the code generated by the Wizard.

When we click on the Next button, we get transported to screen 7.36, where the requirement for an About box is ascertained. Yet again, we reply in the negative for the same reasons specified earlier and we click on the Next button.


Screen 7.36	Screen 7.37

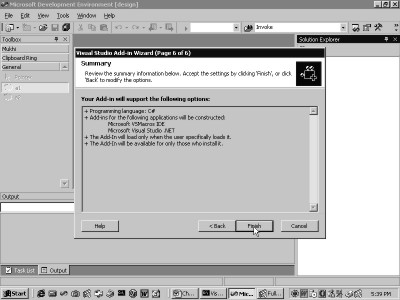

The screen that now floats before the eyes is the last screen of the Wizard, as seen in screen 7.37. This is merely a summary of what has been selected so far. We have the option to revert back and modify some of the options. Clicking on the Finish button darts us back to the Visual Studio.Net IDE.

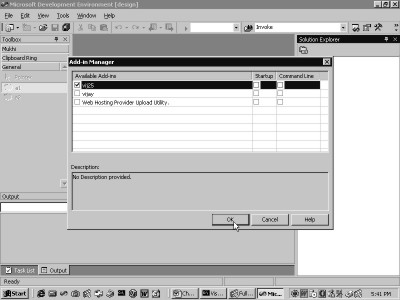

Now, build the solution, and then, activate the Add-in Manager, as depicted in screen 7.38.

Screen 7.38

Here, it is amply evident that the Add-in called vij25 has been added to the registry. Moreover, in the project options, the COM interop option has been set to True.

Finally, let us size up the code generated by the wizard, sans the comments.

Connect.cs

namespace vij25

{

using System;

using Microsoft.Office.Core;

using Extensibility;

using System.Runtime.InteropServices;

using EnvDTE;

[GuidAttribute("0B3AB622-23B2-490C-9023-779CB76C0786"), ProgId("vij25.Connect")]

public class Connect : Object, Extensibility.IDTExtensibility2

{

public Connect()

{

}

public void OnConnection(object application, Extensibility.ext_ConnectMode connectMode, object addInInst, ref System.Array custom)

{

applicationObject = (_DTE)application;

addInInstance = (AddIn)addInInst;

}

public void OnDisconnection(Extensibility.ext_DisconnectMode disconnectMode, ref System.Array custom)

{

}

public void OnAddInsUpdate(ref System.Array custom)

{

}

public void OnStartupComplete(ref System.Array custom)

{

}

public void OnBeginShutdown(ref System.Array custom)

{

}

private _DTE applicationObject;

private AddIn addInInstance;

}

Since the project was assigned the name of vij25, the entire code is encompassed in a namespace with the same name of vij25. There are five namespaces that get created. Further, six references are added by the template that creates the project.

The GuidAttribute has a GUID, which is generated by a well-defined algorithm located in the public domain. A different GUID is generated each time a new Add-in Project is created. The Wizard creates the ProgID by concatenating the name of the namespace and the word Connect. The user never interacts directly with a ProgID.

As mentioned earlier, the word ProgID is seemingly a good luck charm. Since the name of the class has been specified as vij25, the Wizard adds the word Connect to it. Then, it derives the class from the interface IDTExtensibility2, along with the Object. In any case, all the classes are derived from Object.

The five functions that constitute the interface are itemized, and two instance objects applicationObject and addInInsatnce, of type _DTE and Add-in, respectively, are defined. The final outcome is that the Add-in generated by the Wizard and the previous Add-in bear a striking resemblance to each other. Now, it is for you to make a choice between using the Wizard and doing the job manually.

If you heed our advice, we recommend that you should first figure out exactly how the Wizard works. Once the procedure is discerned, the process can be executed manually, since the Wizards are time-consuming. You should bear in mind that the COM interop option first un-registers the Add-in from the registry, and subsequently, registers it again.

Finally, before we conclude this chapter, let us pore over a simple Add-in, which creates a menu on being loaded. Then, when the menu items are clicked, the Add-in displays a plain and simple message box. To achieve this, load the project vij25 and modify the code to the following:-

namespace vij25

{

using System;

using Microsoft.Office.Core;

using Extensibility;

using System.Runtime.InteropServices;

using EnvDTE;

using System.Windows.Forms;

[GuidAttribute("00271586-C6A9-44EF-A342-2E63FFD4D384"), ProgId("vij25.Connect")]

public class Connect : Object, Extensibility.IDTExtensibility2

{

DTE applicationObject;

public Connect()

{

MessageBox.Show("Connect");

}

public void OnConnection(object application, Extensibility.ext_ConnectMode connectMode, object addInInst, ref System.Array custom)

{

applicationObject = (DTE)application;

CommandBars cb;

cb = applicationObject.CommandBars;

CommandBar ct;

ct = cb["Tools"];

CommandBarControls cs;

cs = ct.Controls;

try

{

CommandBarControl c;

c = cs.Add(MsoControlType.msoControlButton, 1, null,1, false);

c.Visible = true;

c.Caption = "Vijay Mukhi1";

Events ev;

ev = applicationObject.Events;

CommandBarEvents e;

e = ev.get_CommandBarEvents(c);

e.Click += new _dispCommandBarControlEvents_ClickEventHandler(abc);

}

catch (System.Exception x)

{

MessageBox.Show(x.ToString());

}

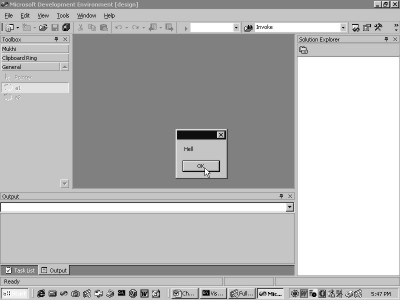

public void abc(object c, ref bool h, ref bool ca)

{

MessageBox.Show("Hell");

}

public void OnDisconnection(Extensibility.ext_DisconnectMode disconnectMode, ref System.Array custom)

{

}

public void OnAddInsUpdate(ref System.Array custom)

{

}

public void OnStartupComplete(ref System.Array custom)

{

}

public void OnBeginShutdown(ref System.Array custom)

{

}

We get underway by defining an instance variable called applicationObject, which is of type or class DTE. This class could also be written as _DTE. The object name is specified as applicationObject, because the wizard has taken a fancy to using such long-drawn names. Hence, we have made an exception here.

The class DTE is derived only from object, which is the 'mother of all classes' in the Visual Studio Automation Object Model. All classes used in the Automation world are sourced from the DTE class. It is the counter-part of the class object. DTE stands for Development Tools Extensibility. It is an integral part of the namespace EnvDTE and the code of this class resides in the file dte.olb.

All code that is required to be called just once, is posited in the function OnConnection, even though the function OnAddInsUpdate gets called after OnConnection. Placing such code in the function OnAddInsUpdate could mean a spot of bother, since it gets called on more than one occasion, when another Add-in is loaded.

The first parameter of OnConnection is the most crucial one, since it is of type DTE and not of object. This parameter application is stored in an instance variable called applicationObject, although in this case, it is not mandatory to do so. The rationale behind this is that the other four functions in the interface IDTExtensibility2 are not passed this DTE object. Hence, by saving it in an instance variable, the object is made accessible to the other functions too.

The use of the object applicationObject could have easily been circumvented, but since the Microsoft samples resort to this technique, we decided to follow in their footsteps.

This DTE parameter is of utmost significance, since it allows us to access and modify the Visual Studio environment. The property CommandBars is used to add a menu. This provides a CommandBars object, which is stored in the variable cb. Then, using this CommandBars object, the menus of the Visual Studio.Net can be accessed.

This object is part of the Microsoft Office type library code, which is stored in the file mso.dll. Therefore, Microsoft's heart is set upon using the code of Office 2000 in Visual Studio.Net, thereby making the programmer adept at writing Office code as well.

The CommandBars represents all the commands or the menus in Visual Studio. However, we wish to gain access to only the menu Tools. It is because all Add-ins by convention are required to place their menu items under the Tools menu.

The indexer approach is used for this purpose. The indexer is one of the most potent concepts introduced in C#, which facilitates retrieval of the items in a collection. Thus, using the indexer, the object ct of type CommandBar is extracted from the CommandBars object cb. You may have noticed the extra 's'. The object ct becomes a handle to the entire Tools menu. Based on the similar principle, any other menu may also be accessed.

The CommandBar object ct that represents the Tools menu has a property Controls. This property provides access to the CommandBarControls object cs. Any object, whose name ends with the letter 's', represents a collection.

Fresh menu items can be added to the Tools menu by using the Add function. This function returns a handle to the recently added menu item in the Tools menu, which is then saved in a CommandBarControl object. Thus, a CommandBarControls object is fabricated out of CommandBarControl objects. The CommandBarControl object can be one of the 23 available types.

The Windows XP Developer's Guide provides more details on the same. All Office applications under Windows employ the same underlying technology for creating menus and toolbars.

The Command Bars Object model has been created to utilize the knowledge acquired from one Office application in all other applications. This signifies astuteness or good judgment, since menus and toolbars are splitting images of each other in all the Office applications.

There are a total of three types of CommandBar objects that we need to focus upon, viz. toolbars, menus and pop-up menus.

The first parameter to the Add function is an enum named MsoControlType. It may possess the following values for the different types of entities to be placed within a menu item: button msoControlButton, textbox msoControlEdit, drop-down listbox msoControlDropdown, combo box msoControlComboBox or pop-up menu msoControlPopup.

For the current application, the various parameters are as follows:-

• The first parameter is an option of type Button.

• The second parameter is the object, which is set to the number 1.

• The third parameter may be passed on to the menu.

• The fourth parameter is the object before which this menu item is to show up. Changing this value will push the menu item down in the list of menu items.

• The value of the fifth and the last parameter determines whether the object is temporary or otherwise.

Next, the menu item object c, returned by the Add function, is manipulated by setting certain properties. The value of the Visible property is set to True, even though it already has a default value of True. The Caption property determines as to what should get displayed in the menu item.

At this stage, you may pause and build the above solution. Then, activate the solution in the Add-in Manager. The Tools menu will bring forth a new menu item right at the top, containing the words Vijay Mukhi1, as shown in screen 7.39. If no value has been specified for the Caption property, then an empty menu item gets projected.

Screen 7.39

All this may appear to be majestic, but the primary mission is yet to be accomplished. We endeavour to execute some of our indigenous code when this menu item is clicked on.

The DTE object has a read-only property called Events of type Events, which offers access to all the Events in the Automation model. This Events object has been safely stashed away in the variable ev.

Events is an interface derived from Idispatch. Seasoned programmers would surely recall that it had formed a part of the OLE/COM world. The Automation Model employs the Events interface as the starting point for the Event Handling.

The Events class has a property called CommandBarEvents. It accepts a property or a menu item object, or even the CommandBarControl, which has been appended to the Tools menu. On occasions aplenty, the properties refuse to accept parameters. However, if they do, the get_ prefix is then used to call the property.

Thus, ev.get_CommandBarEvents( c ) is employed to call the Get accessor of the property CommandBarEvents from the Events class, and to pass it a parameter named 'c'. This property provides access to a CommandBarEvents object, which represents the event-handling for the freshly added menu option.

Thus, by resorting to this property, a CommandBarEvents object is obtained, which contains a Click event for an event called Click. This event is set to the function abc using the delegate called dispCommandBarControlEvents_ClickEventHandler.

Thus, whenever the menu option Vijay Mukhi1 is clicked on, the function abc gets called, which simply displays a Message Box, as brought forth in screen 7.40.

Screen 7.40

Three parameters are passed to this function abc:-

• The first parameter represents the CommandBar object.

• The second parameter signifies whether the click event has been taken care of or not.

• Finally, the third parameter determines whether the built-in command should be invoked or not.

In this case, there is no built-in command, since we have inserted this menu item. This is how we can add a menu item to the existing menus and activate the code present in the Add-in. The 'try and catch' clause could well have been omitted. However, we have included it with the sole purpose of identifying the cause and the location of an exception that may occur while writing code.

In the Add function, which is used to add a new menu item, replace the enum value to msoControlComboBox for the first parameter, as follows:-

c = cs.Add(MsoControlType.msoControlComboBox , 1, null,1, false);

This modification eventuates in the display of a combo box along with the words Vijay Mukhi1, as seen in screen 7.41.

Screen 7.41

The Add-in can be loaded in myriad ways. One possibility is to load it through the Add-in Manager, while the other is to load it automatically at startup. To implement this, remove the abc function from the above program and replace the OnConnection function as follows:-

public void OnConnection(object application, ext_ConnectMode c, object addInInst, ref System.Array custom) {

MessageBox.Show(c.ToString());

}

As elucidated earlier, the first parameter is the most crucial one, since it represents the DTE object. The second parameter c represents an enum ext_ConnectMode, which dwells in the namespace EnvDTE. The message box merely displays its value.

Now, build the solution. The subsequent step is to select it in the Add-in Manager, and also to select the checkbox that reads 'startup'. The message box that emerges has a constant value of ext_cm_AfterStartup or 0, as seen in screen 7.42.

Screen 7.42

This value corroborates the fact that the Add-in has been loaded only after Visual Studio.Net was started. This could have been accomplished either by using the Add-in Manager or by setting its Connect property to True.

Now, shutdown and restart Visual Studio.Net. This time, the message box display that is returned by the Add function, illustrates the constant ext_cm_Startup with the value of 1, as seen in screen 7.43. This validates the fact that the Add-in was loaded at startup.

Screen 7.43

There are four more approaches by means of which an Add-in can be loaded. The value ext_cm_External or 2 signifies that the Add-in was loaded by an external entity, which may have been a program or a component. The value 3 or ext_cm_CommandLine indicates that the Add-in was loaded by running Visual Studio, using the command line devenv. The Fourth approach would be to utilize the services of an Add-in. At this point, the enum name is ext_cm_Solution and the value is 4. The final possibility is ext_cm_UISetup or 5, which is employed when the Add-in starts for the very first time after installation.
